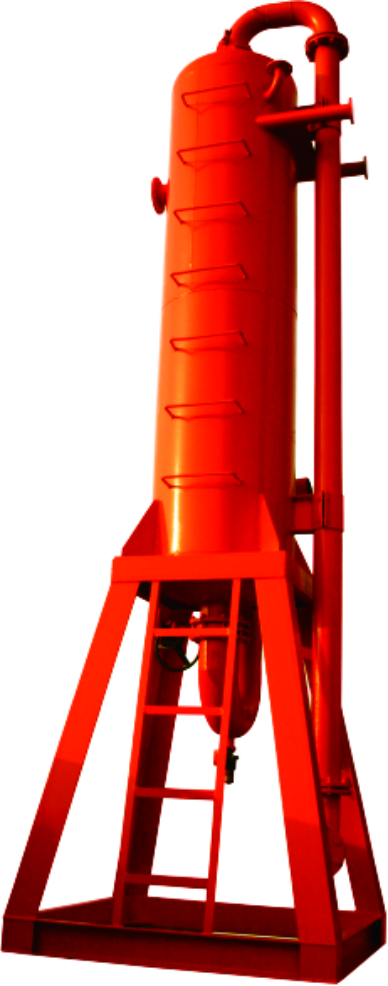

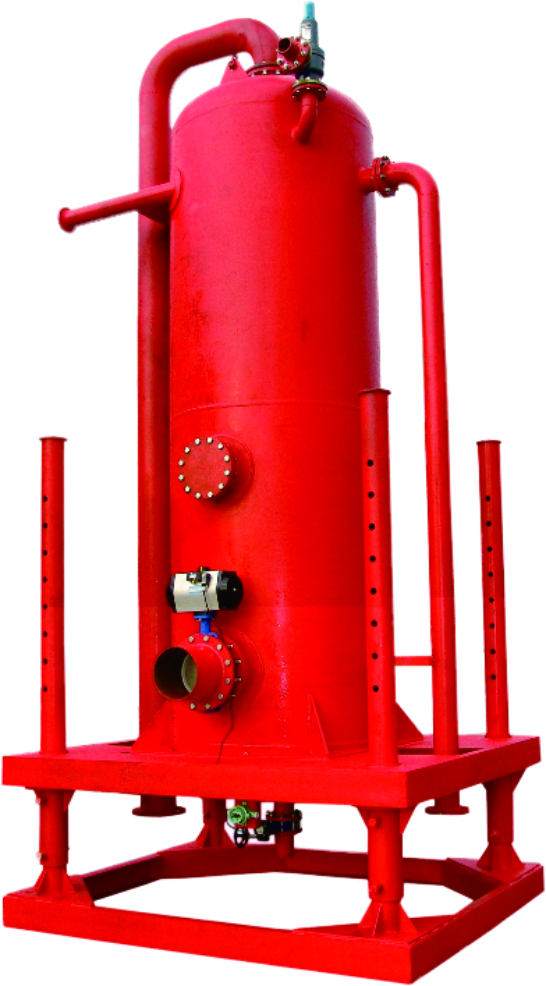

^液氣分離器：Liquid Gas Seperator^
作者：西安華揚油氣設備有限公司 發布日期：2018-10-26
液氣分離器是與節流管匯配套使用，用于脫離鉆井液中游離氣體，可應用于欠平衡鉆井和含硫化氫氣體的鉆井液處理。傳統分離器液位和壓力的控
功能詳情 技術參數
西安華揚油氣設備有限公司液氣分離器產品特點Features and Benefits：
HYZYQ系列液氣分離器是專門去除泥漿中氣體，穩定泥漿比重，降低井噴事故的主要設備。液氣分離器在鉆探深層井位和氣井井位是必須配備的設備。使用時需要和電子點火裝置聯合使用燃燒鉆井過程中產生的可燃性有害氣體。（HYZYQ series liquid-gas separator is specifically designed to remove mud gas , stabilized the mud weight, The main equipment to reduce the blowout. Liquid-gas separator in deep-well drilling gas wells were to be equipped with the device. When combined with electronic ignition burning flammable harmful gases produced in the drilling process.）
HYZYQ系列液氣分離器是專門去除泥漿中氣體，穩定泥漿比重，降低井噴事故的主要設備。液氣分離器在鉆探深層井位和氣井井位是必須配備的設備。使用時需要和電子點火裝置聯合使用燃燒鉆井過程中產生的可燃性有害氣體。（HYZYQ series liquid-gas separator is specifically designed to remove mud gas , stabilized the mud weight, The main equipment to reduce the blowout. Liquid-gas separator in deep-well drilling gas wells were to be equipped with the device. When combined with electronic ignition burning flammable harmful gases produced in the drilling process.）
| 型號Model | HYZYQ800 | HYZYQ1000 | HYZYQ1200 |
| 處理量Capacity | 180?/h | 240?/h | 320?/h |
|
主體直徑 Main body Diameter |
800mm | 1000mm | 1200mm |
| 進液管Inlet Pipe | DN100mm | DN125mm | DN1250mm |
| 出液管Output Pipe | DN150mm | DN200mm | DN250mm |
|
排氣管 Gas Discharge pipe |
DN200mm | DN200mm | DN200mm |
| 重量Weight | 1750kg | 2235kg | 2600kg |
|
外形尺寸 Dimensions |
1900×1900×5700mm | 2000×2000×5860mm | 2200×2200×6634mm |
